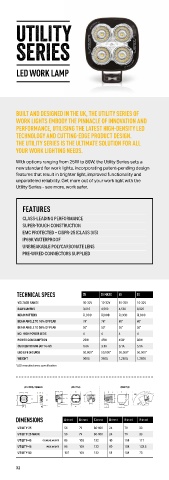

Page 34 - Product Catalogue 2023/4

LED WORK LAMP

BUILT AND DESIGNED IN THE UK, THE UTILITY SERIES OF
WORK LIGHTS EMBODY THE PINNACLE OF INNOVATION AND
PERFORMANCE, UTILISING THE LATEST HIGH-DENSITY LED
TECHNOLOGY AND CUTTING-EDGE PRODUCT DESIGN.
THE UTILITY SERIES IS THE ULTIMATE SOLUTION FOR ALL
YOUR WORK LIGHTING NEEDS.

With options ranging from 25W to 80W, the Utility Series sets a
new standard for work lights, incorporating patent-pending design
features that result in brighter light, improved functionality and
unparalleled reliability. Get more out of your work light with the
Utility Series - see more, work safer.

FEATURES
CLASS-LEADING PERFORMANCE
SUPER-TOUGH CONSTRUCTION
EMC PROTECTED – CISPR-25 (CLASS 3/5)
IP69K WATERPROOF
UNBREAKABLE POLYCARBONATE LENS
PRE-WIRED CONNECTORS SUPPLIED

TECHNICAL SPECS 25 25 MAXX 45 80
VOLTAGE RANGE 10-32V 10-32V 10-32V 10-32V
RAW LUMENS 3,016 4,560 4,560 8,820
BEAM PATTERN FLOOD FLOOD FLOOD FLOOD
BEAM ANGLE TO 10% OF PEAK 78° 78° 80° 80°
BEAM ANGLE TO 50% OF PEAK 50° 50° 50° 50°
NO. HIGH POWER LEDS 4 4 4 4
POWER CONSUMPTION 25W 45W 45W 80W
CURRENT DRAW (AT 14.4V) 1.6A 3.1A 3.1A 5.5A
LED LIFE (HOURS) 50,000* 50,000* 50,000* 50,000*
WEIGHT 360G 360G 1,260G 1,260G
*LED manufacturers specification
111 ° UP
A E
7.4 ° UP 120°
32 ° DOWN B C
2.5 ° DOWN
UTILITY 25 / 25 MAXX D UTILITY 45 UTILITY 80
F
A E A E
E A 100°
120°
B B C B C
C C
30°
F D D F D F
E A
DIMENSIONS A (mm) B (mm) C (mm) A D (mm) E E (mm) F (mm)
C B C 100°
UTILITY-25 D 56 79 86-100 24 B 79 C 33
F
UTILITY-25 MAXX 56 79 86-100 24 79 30° 33
D F
UTILITY-45 (SLIMLINE MOUNT) 85 108 132 40 108 117
UTILITY-45 (WIDE MOUNT) 85 108 132 60 108 133.5
UTILITY-80 107 108 132 51 108 73
32
