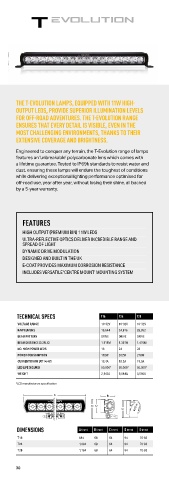

Page 32 - Product Catalogue 2023/4

st evolution

THE T-EVOLUTION LAMPS, EQUIPPED WITH 11W HIGH-
OUTPUT LEDS, PROVIDE SUPERIOR ILLUMINATION LEVELS
FOR OFF-ROAD ADVENTURES. THE T-EVOLUTION RANGE
ENSURES THAT EVERY DETAIL IS VISIBLE, EVEN IN THE
MOST CHALLENGING ENVIRONMENTS, THANKS TO THEIR
EXTENSIVE COVERAGE AND BRIGHTNESS.

Engineered to conquer any terrain, the T-Evolution range of lamps
features an 'unbreakable' polycarbonate lens which comes with
a lifetime guarantee. Tested to IP69k standards to resist water and
dust, ensuring these lamps will endure the toughest of conditions
while delivering exceptional lighting performance optimised for
off-road use, year after year, without losing their shine, all backed
by a 5-year warranty.

FEATURES
HIGH OUTPUT (PREMIUM BIN) 11W LEDS
ULTRA-REFLECTIVE OPTICS DELIVER INCREDIBLE RANGE AND
SPREAD OF LIGHT
DYNAMIC DRIVE MODULATION
DESIGNED AND BUILT IN THE UK
E-COAT PROVIDES MAXIMUM CORROSION RESISTANCE
INCLUDES VERSATILE 'CENTRE MOUNT' MOUNTING SYSTEM

TECHNICAL SPECS T16 T24 T28

VOLTAGE RANGE 10-32V 10-32V 10-32V
RAW LUMENS 16,544 24,816 28,952
BEAM PATTERN DRIVE DRIVE DRIVE
BEAM DISTANCE (0.25LX) 1,111M 1,361M 1,470M
NO. HIGH POWER LEDS 16 24 28
POWER CONSUMPTION 192W 262W 278W
CURRENT DRAW (AT 14.4V) 13.4A 18.2A 19.3A
LED LIFE (HOURS) 50,000* 50,000* 50,000*
WEIGHT 2,142G 3,084G 3,590G
*LED manufacturers specification
A A B B

D D C C
E E

DIMENSIONS A (mm) B (mm) C (mm) D (mm) E (mm)
LENGTH 68 68
LENGTH
T16 684 68 64 94 70-83
T24 1,004 94 68 64 64 64 94 70-83
94
70-83
T28 1,164 68 64 70-83 94 70-83
30
