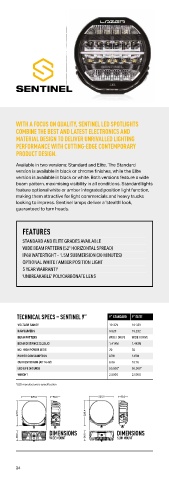

Page 26 - Product Catalogue 2023/4

WITH A FOCUS ON QUALITY, SENTINEL LED SPOTLIGHTS
COMBINE THE BEST AND LATEST ELECTRONICS AND
MATERIAL DESIGN TO DELIVER UNRIVALLED LIGHTING
PERFORMANCE WITH CUTTING-EDGE CONTEMPORARY
PRODUCT DESIGN.

Available in two versions: Standard and Elite. The Standard
version is available in black or chrome finishes, while the Elite
version is available in black or white. Both versions feature a wide
beam pattern, maximising visibility in all conditions. Standard lights
feature optional white or amber integrated position light function,
making them attractive for light commercials and heavy trucks
looking to impress. Sentinel lamps deliver a 'stealth' look,
guaranteed to turn heads.

FEATURES
STANDARD AND ELITE GRADES AVAILABLE
WIDE BEAM PATTERN (52° HORIZONTAL SPREAD)
IP68 WATERTIGHT – 1.5M SUBMERSION (30 MINUTES)
OPTIONAL WHITE / AMBER POSITION LIGHT
5 YEAR WARRANTY
'UNBREAKABLE' POLYCARBONATE LENS

TECHNICAL SPECS – SENTINEL 9” 9” STANDARD 9” ELITE
VOLTAGE RANGE 10-32V 10-32V
RAW LUMENS 9,520 15,232
BEAM PATTERN WIDE / DRIVE WIDE / DRIVE
225.0 90.0 225.0 90.0
BEAM DISTANCE (0.25LX) 1,414M 1,483M
NO. HIGH POWER LEDS 20 32
229.5 229.5
POWER CONSUMPTION 87W 145W
CURRENT DRAW (AT 14.4V) 6.0A 10.1A
LED LIFE (HOURS) 50,000* 50,000*
WEIGHT 2,500G 2,500G
90.0 90.0
*LED manufacturers specification

225.0 90.0 225.0 225.0 90.0 90.0 225.0 90.0

229.5 229.5 228.4 228.4

DIMENSIONS DIMENSIONS
90.0 WIDE MOUNT 90.0 90.0 SLIM MOUNT 90.0

225.0 90.0 225.0 90.0

228.4 228.4
24

90.0 90.0
