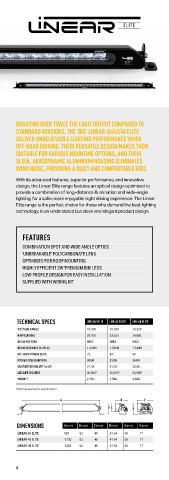

Page 10 - Product Catalogue 2023/4

BOASTING OVER TWICE THE LIGHT OUTPUT COMPARED TO
STANDARD VERSIONS, THE 'BIG' LINEAR-36/42/48 ELITE
DELIVER UNBELIEVABLE LIGHTING PERFORMANCE WHEN
OFF-ROAD DRIVING. THEIR VERSATILE DESIGN MAKES THEM
SUITABLE FOR VARIOUS MOUNTING OPTIONS, AND THEIR
SLEEK, AERODYNAMIC ALUMINIUM HOUSING ELIMINATES
WIND NOISE, PROVIDING A QUIET AND COMFORTABLE RIDE.

With its advanced features, superior performance, and innovative
design, the Linear Elite range features an optical design optimised to
provide a combination of long-distance illumination and wide-angle
lighting, for a safer, more enjoyable night driving experience. The Linear
Elite range is the perfect choice for those who demand the best lighting
technology, in an understated but sleek and elegant product design.

FEATURES

COMBINATION SPOT AND WIDE ANGLE OPTICS
'UNBREAKABLE' POLYCARBONATE LENS
OPTIMISED FOR ROOF MOUNTING
HIGHLY EFFICIENT 3W 'PREMIUM BIN' LEDS
LOW-PROFILE DESIGN FOR EASY INSTALLATION
SUPPLIED WITH WIRING KIT

TECHNICAL SPECS LNR-36 ELITE LNR-42 ELITE LNR-48 ELITE
VOLTAGE RANGE 10-32V 10-32V 10-32V
RAW LUMENS 29,700 33,300 34,800
BEAM PATTERN WIDE WIDE WIDE
BEAM DISTANCE (0.25LX) 1,423M 1,530M 1,543M
NO. HIGH POWER LEDS 72 84 96
POWER CONSUMPTION 308W 355W 364W
CURRENT DRAW (AT 14.4V) 21.4A 24.7A 25.3A
LED LIFE (HOURS) 50,000* 50,000* 50,000*
WEIGHT 2.7KG 3.5KG 4.0KG
*LED manufacturers specification
A B F
D C E

DIMENSIONS A (mm) B (mm) C (mm) D (mm) E (mm) F (mm)
LINEAR-36 ELITE 982 62 40 41-54 58 77
LINEAR-42 ELITE 1,132 62 40 41-54 58 77
LINEAR-48 ELITE 1,282 62 40 41-54 58 77
